Software defined radio 2/4. Antennas

One down from my RTL-SDR posting series and three to go. This post is a guide to build simple and cheap antennas for HF/VHF radio.

As I told in my previous post. RTL-SDR receiver I bought came with 28cm whip antenna. It is not a surprise that one can not get decent signal with that kind on antenna. Using it I could hardly hear local radio station at 90.000MHz. Signal was Ok as I touched the antenna to adjust it but after releasing my fingers there was lots of distortions and cracks in audio.

Original antenna

After initial tests I replaced small whip with 10 meters of 1.5mm2 copper wire and hang the element to the ceiling. This antenna was able to receive some strong Russian HF transmissions and local radio stations quite well. Few times I could also hear local airport traffic calls at 123.550MHz.

Switching between HF band and VHF band was a bit frustrating because I had to change the coaxial cable to different connector. Also these bands require very different kind of antennas and antenna end of existing coaxial did not made it possible to connect decent HF antenna. To patch this problem I ordered another coaxial cable. I found suitable cable from England using Ebay. Seven meter cable is longer, more robust and had necessary SMA male & N-male connectors.

7m coaxial cable with SMA-male and N-male connectors

Firstly I decided to build horizontal dipole to receive HF signals. I did not want to use money to buy balun for my antenna so I soldered two 20 meters 1.5mm2 wire elements directly to female N-connector and cover all joints with lots of hot glue.

You are right! One should consider antenna impedance and element lengths but this will do for now. I could fit total length of 40 meter antenna to my plot but no more. So I used all space I could. And luckily I was able to use chimney as route for coaxial as it was located near center of the plot. And for now I am only receiving so SWR is not so important.

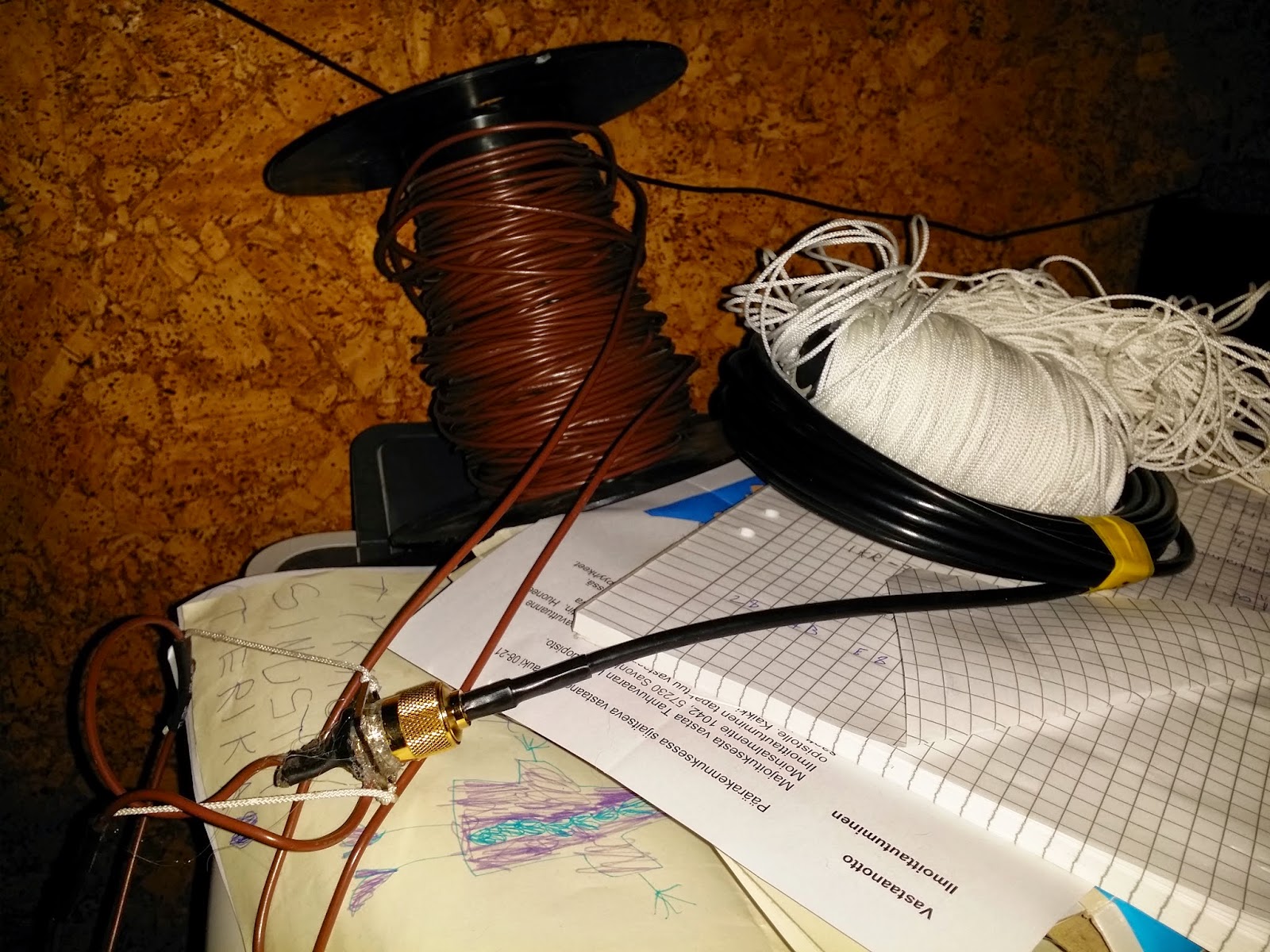

As always. Fastening line is totally tangled

Horizontal dipole and coaxial connection

Then it was time to build VHF antenna. My kids were already sleeping that evening so using lathe, cutting sturdy pipes or welding was out of the question. I had to manufacture something really simple. I found from my shelves 20mm thick teflon puck with 45mm diameter and some 3.5mm diameter 1.2m long metal pipes. I also find tips for antenna construct from this site, but had no exact model in mind when I began putting this together. I used cordless drill to make five holes to puck. One to the center for coaxial cable, one straight up near center for element that is connected to center wire and three to bottom side in 45 degree angle for ground plane radials. Picture below is worth more than thousand words. I cut the four pipes to length of 80cm, used epoxy glue to attach them to holes, solder radial pipe ends together with coaxial cable shield, solder center wire to up pointing pipe and screw plastic clamp to one side of puck for antenna fastening. After epoxy was dry I ones again cover all joints with hot glue.

So why to use 80 centimeter elements? It was mostly coincidence. It fit out of the doors and was easy to carry :)  I checked optimal frequencies for my antenna only when I was writing this text. Full wave length 375MHz, half wave length 187MHz and quarter wave length 93Mhz. So actually it is quite perfect for me: quarter for local radio stations and half for AIS (162MHz).

 DIY VHF antenna with plastic clamp for fastening

Seven meter coaxial for horizontal dipole was perfect length but original three meter cable for VHF antenna was way too short. Here comes really good thing about SDR size. I fitted the whole radio to ventilation chimney to get it close enough to antenna. Only USB cable comes inside my house.

 How to locate RTL-SDR? Close to antennas of course

VHF antenna at roof

My "antenna field"

I should have bought two ten meter coaxial cables to be able to locate antennas farther from chimney and roof. But these antennas seems to work quite well. Maybe I will upgrade these some day.

Price for these antennas? Only thing i had to bought was another coaxial cable for 23€. Price for one female N-connector is 1€, clamp was 1€ few years ago in local hardware store and wire was bargain 300m for 30€ or something like that. HAM radios as hobby are cheap as dirt! If you want so.


*** Forgive me those errors I have made in text and help me to fix them. Please leave comments with link to source if possible.***
